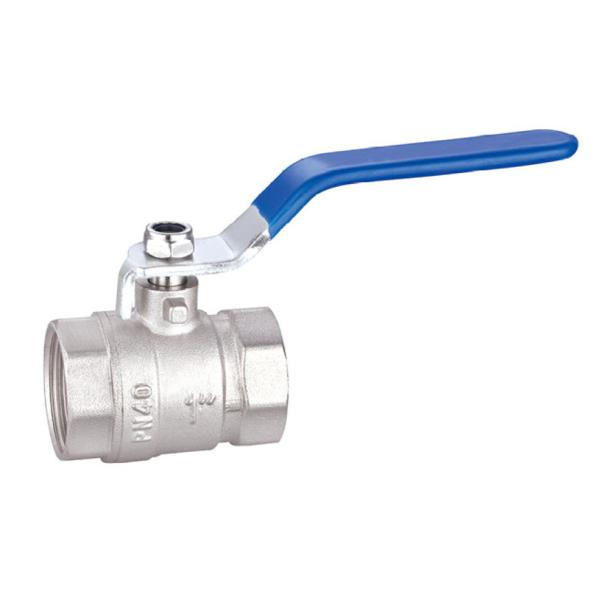

Nickel Plated Brass Ball Valve 1 Inch 2 Inch Sandblaster Ball Valve

Name: Nickel Plated Brass Ball Valve 1 Inch 2 Inch Sandblaster Ball Valve
Brand: Taizhou XingNuo
Price: 1 USD

Brand Name : Taizhou XingNuo

Model Number : BV1024

Place of Origin : Zhejiang Taizhou

MOQ : 3000Pcs

Payment Terms : T/T

Packaging Details : Xingnuo Package

Stem Material : Brass

Nominal Pressure : Max.25bar

Working Temperature : -10~120°C（14～248°F）

Threaded : ISO228/1

Processing Technic : Sand blast and nickel plate

Test : 100％leak tested

Handle Material : Aluminium

Brass Material : HPB57-3

Seal Material : PTFE

Size : 1/2"x16,3/4"x20

Contact Now

BV1022 Brass Ball Valve Forged Brass Body Sand Blast Sand Blast And Nickel Plated

Brass BV1022

Specification

forged brass body
sand blast and nickel plated
nominal pressure:Max.25bar(362.6psi)
temperature:-10~120°C(14～248°F)
threaded ISO228/1
100% leak tested

Technical Specification

Dimensions

SIZE	A	B	C	D	E
1/4"	39	22	35	80	10
3/8"	39	22	35	80	10
1/2"	45	27	44	90	13
3/4"	51.5	34	47.5	100	18
1"	59.5	41.3	53	128	22.5
1 1/4"	71	50	65	134.5	29
1 1/2"	80	60	74.5	165.5	34
2"	95.5	77.5	82	165.5	45
2 1/2”	120	100.5	122	240	60
3"	141.5	120	130.5	240	73
4”	172.5	146.5	143.5	240	90

packaging

SIZE	Weight(g)	Inner Box(mm)	Carton(mm)	Qty per inner box	Qty per carton
1/4"	93	14.5×14.5×6	32×16×30.5	18	180
3/8"	88	14.5×14.5×6	32×16×30.5	18	180
1/2”	154	21.5×13.5×7.5	39×23×28.5	12	120
3/4"	211	21.5×13.5×7.5	39×23×28.5	12	120
1”	347	16.5×13×8	42×18×27.5	6	60
1 1/4"	500	22.5×12.5×7.5	42×24×26.5	4	40
1 1/2"	770	21.5×11×6.5	34×23×35	2	30
2"	1250	22.5×12.5×8	41.5×24×26.5	2	20
2 1/2"	2450	31.5×18.5×10.5	39×23×33.5	2	8
3"	3669	34×20×13	41×22×36	2	6
4"	5580	36×22.5×15.5	38×24.5×33	2	4

Product Details

Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
Ball Valve: Smooth and wear resisting, with good sealing performance.
Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.
Handle: The handle is made of aluminium alloy by casting, professional surface painting, wear resisting and with anti-corrosion. Small appearance, flexible opening and closing when installed in various environments.
Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.
Stainless Steel Lock screw: Internal design of anti-loose, can be used for long time.
O-ring: made of imported raw material,special for gas, small friction coefficient, long service life and not easy to leak.

Reminding

The thread, color of handle, materials, etc. can be customized.
Brass Ball Valve with Aluminium handle.
Ball valves in yellow handle can be only used in all types of gas, town gas (1st famlily), natural gas (2nd family), and liquid gas (3rd family). They are not allowed to be used in any water and air systems.

Brass Ball Valve series

The brass ball valve is mainly used to cut off, distribute and change the medium flow direction. The ball valve designed as a V-shaped opening also has a good flow regulation function.
