Home > Brass Ball Valve >

1/4" 1/2" 3/8" Brass Mini Ball Valve Male Threaded Connections Versatile

Product Categories

TAIZHOU XINGNUO TECHNOLOGY CO.,LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

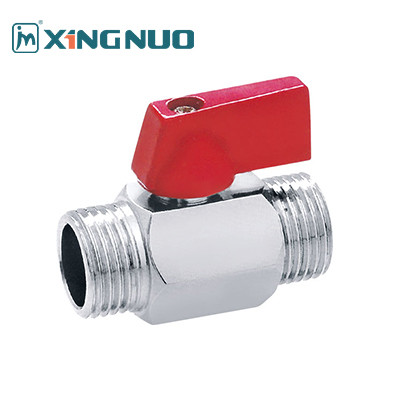

1/4" 1/2" 3/8" Brass Mini Ball Valve Male Threaded Connections Versatile

Name: 14quot 12quot 38quot Brass Mini Ball Valve Male Threaded Connections Versatile
Brand: Taizhou XingNuo
Price: 1 USD

Brand Name : Taizhou XingNuo

Place of Origin : Zhejiang Taizhou

MOQ : 1000Pcs

Payment Terms : T/T

Delivery Time : 30

Packaging Details : Xingnuo Package

Stem Material : Brass

Nominal Pressure : Max.25bar

Working Temperature : -10~120°C（14～248°F）

Threaded : ISO228/1

Processing Technic : Sand blast and nickel plate

Test : 100％leak tested

Handle Material : Iron,S / S

Brass Material : HPB57-3

Seal Material : PTFE

Size : 1/4",3/8",1/2"

Packing : PP plastic + Carton

Material Ball : brass

Valve Type : Ball Valve

Body Material : HPb57-3 copper

Handle Color : red

Structure : BALL

Weight : 72g

Application : Water, Oil, Gas

Oem : Provide OEM Services

Color : Brass Color/Chrome Plated/Nickel Plated

Technology : forged

Warranty : 1 year

Media : water oil gas

Contact Now

Brass Mini Ball Valve 1/4",3/8"1/2" With Chrome Plated/Temperature:-10-110/100%

Brass Ball Valve

Specification

forged brass body
sand blast and nickel plated
nominal pressure:Max.25bar(362.6psi)
temperature:-10~120°C(14～248°F)
threaded ISO228/1
100% leak tested

Technical Specification

Dimensions

SIZE	A	C	D	E
1/4"	36.5	23.3	32.6	6
3/8"	36.5	26.3	32.6	6
1/2"	38	26.5	32.6	8

Product Details

Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
Ball Valve: Smooth and wear resisting, with good sealing performance.
Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.
Handle: The handle is made of aluminium alloy by casting, professional surface painting, wear resisting and with anti-corrosion. Small appearance, flexible opening and closing when installed in various environments.
Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.
Stainless Steel Lock screw: Internal design of anti-loose, can be used for long time.
O-ring: made of imported raw material,special for gas, small friction coefficient, long service life and not easy to leak.

Reminding

The thread, color of handle, materials, etc. can be customized.
Brass Ball Valve with Aluminium handle.
Ball valves in yellow handle can be only used in all types of gas, town gas (1st famlily), natural gas (2nd family), and liquid gas (3rd family). They are not allowed to be used in any water and air systems.

Certificates

Packaging Details

SIZE	Weight(g)	Inner Box(mm)	Carton(mm)	Qty per inner box	Qty per carton
1/4"	88	14.5x14.5x6	31.5x16.5x31	30	300
3/8"	75	14.5x14.5x6	31.5x16.5x31	30	300
1/2"	106	14.5x14.5x6	31.5x16.5x31	24	240

Brass Ball Valve series

The brass ball valve is mainly used to cut off, distribute and change the medium flow direction. The ball valve designed as a V-shaped opening also has a good flow regulation function.

Compant Profiles

1. The Brass Mini Ball Valve is designed with 1/4", 1/2", and 3/8" male threaded connections, making it versatile for various plumbing applications. The chrome plated finish not only gives it a sleek appearance but also adds durability by making it wear-resistant. This valve is ideal for controlling the flow of liquids or gases in a precise manner.

2. With its compact size and sturdy brass construction, this Mini Ball Valve is built to last and withstand tough conditions. The male threaded ends ensure a secure connection, preventing leaks and ensuring smooth operation. The chrome plating not only enhances its aesthetic appeal but also provides an extra layer of protection against corrosion and rust.

3. Whether you are working on a DIY project or a professional plumbing job, this Brass Mini Ball Valve is a reliable choice. Its precision engineering and high-quality materials make it a dependable component for any plumbing system. The chrome plated finish adds a touch of elegance while also increasing its longevity, making it a valuable addition to your toolkit.
