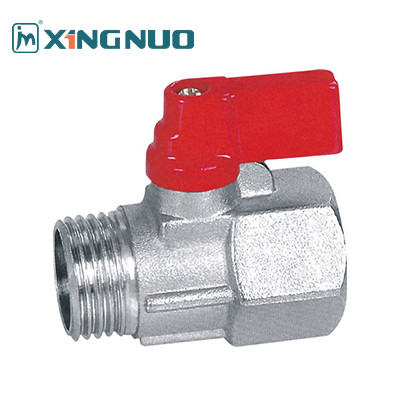

Female And Male Threaded Plating Body Ss Brass Mini Ball Valve Water Pipe Fitting 1/2 Inch

Name: Female And Male Threaded Plating Body Ss Brass Mini Ball Valve Water Pipe Fitting 12 Inch
Brand: Taizhou XingNuo
Price: 1 USD

Brand Name : Taizhou XingNuo

Place of Origin : Zhejiang Taizhou

MOQ : 1000Pcs

Payment Terms : T/T

Delivery Time : 30

Packaging Details : Xingnuo Package

Stem Material : Brass

Nominal Pressure : max25bar

Working Temperature : -10~120°C（14～248°F）

Threaded : ISO228/1

Processing Technic : Sand blast and nickel plate

Test : 100％leak tested

Handle Material : Iron,S / S

Brass Material : HPB57-3

Seal Material : PTFE

Size : 1/4",3/8",1/2"

Packing : PP plastic + Carton

Surface Treatment : nature color

Payment : T/T, LC,D/P etc...

Gasket : FTFE

Operation : Manual

Body Material : PPR

Material : Brass

End Type : NPT

Customized Support : OEM, ODM, OBM

Temperature : -10-110

Temperature Rating : 0-200°F

Flow Direction : Bidirectional

Contact Now

Brass Mini Ball Valve 1/4",3/8"1/2" With Chrome Plated/Temperature:-10-110/100%

Brass Ball Valve

Specification

forged brass body
sand blast and nickel plated
nominal pressure:Max.25bar(362.6psi)
temperature:-10~120°C(14～248°F)
threaded ISO228/1
100% leak tested

Technical Specification

Dimensions

SIZE	A	C	D	E
1/4"	36.5	23.3	32.6	6
3/8"	36.5	26.3	32.6	6
1/2"	38	26.5	32.6	8

Product Details

Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
Ball Valve: Smooth and wear resisting, with good sealing performance.
Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.
Handle: The handle is made of aluminium alloy by casting, professional surface painting, wear resisting and with anti-corrosion. Small appearance, flexible opening and closing when installed in various environments.
Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.
Stainless Steel Lock screw: Internal design of anti-loose, can be used for long time.
O-ring: made of imported raw material,special for gas, small friction coefficient, long service life and not easy to leak.

Reminding

The thread, color of handle, materials, etc. can be customized.
Brass Ball Valve with Aluminium handle.
Ball valves in yellow handle can be only used in all types of gas, town gas (1st famlily), natural gas (2nd family), and liquid gas (3rd family). They are not allowed to be used in any water and air systems.

Certificates

Packaging Details

SIZE	Weight(g)	Inner Box(mm)	Carton(mm)	Qty per inner box	Qty per carton
1/4"	88	14.5x14.5x6	31.5x16.5x31	30	300
3/8"	75	14.5x14.5x6	31.5x16.5x31	30	300
1/2"	106	14.5x14.5x6	31.5x16.5x31	24	240

Brass Ball Valve series

The brass ball valve is mainly used to cut off, distribute and change the medium flow direction. The ball valve designed as a V-shaped opening also has a good flow regulation function.

Compant Profiles

1
The brass mini ball valve features both female and male threaded connections, allowing for easy installation in various plumbing systems. The valve is constructed with a plating body, ensuring durability and resistance to corrosion. With a stainless steel ball valve, this fitting is designed to control the flow of water efficiently and effectively.

2
Measuring at 1/2 inch, this ball valve is suitable for use in small to medium-sized water pipes, providing a reliable solution for regulating water flow. The combination of brass and stainless steel materials ensures longevity and strength, making it a dependable choice for both residential and commercial applications. The threaded design allows for a secure connection, preventing leaks and ensuring smooth operation.

3
Whether used in a household plumbing system or an industrial setting, this brass mini ball valve is a versatile and practical component. Its compact size and sturdy construction make it ideal for tight spaces and high-pressure environments. With its female and male threaded connections, plating body, and stainless steel ball valve, this fitting offers a reliable solution for controlling water flow in various applications.
