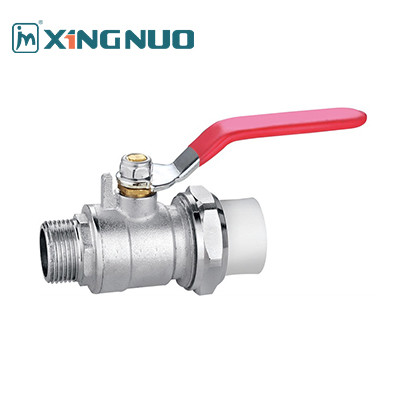

Brass Ball Valve BV1033-MF Forged Brass Body Sand Blast Nickel Plated Pressure:Max25bar
Specification
Dimensions
| SIZE | A | B | C | D | E |
| 1/2" | 52 | 27 | 48 | 97 | 13.5 |
| 3/4" | 55.5 | 32 | 52 | 97 | 17 |
| 1“ | 68 | 41 | 60 | 109 | 22.5 |
| 11/4” | 78.5 | 51.5 | 68.5 | 140 | 29 |
| 11/2” | 88.5 | 60.5 | 71 | 140 | 35 |
| 2” | 101.5 | 74 | 102 | 165 | 44.5 |
packaging
| SIZE | Weight(g) | Inner Box(mm) | Carton(mm) | Qty per inner box | Qty per carton |
| 1/2" | 160 | 17×13.5×7 | 36×28.5×22.5 | 12 | 144 |
| 3/4" | 205 | 17×13.5×7 | 36×28.5×22.5 | 10 | 120 |
| 1” | 362 | 15×13×8 | 32×27.5×25.5 | 6 | 72 |
| 11/4” | 572 | 19×11×9.5 | 40×23.5×20.5 | 4 | 32 |
| 11/2” | 782 | 19.5×13×10.5 | 41×27.5×22.5 | 4 | 32 |
| 2” | 1175 | 22.5×13×8 | 42×27.5×24 | 2 | 20 |
1
The brass red lever ball valve comes in both 1 inch and 2 inch sizes, with male and female threaded options for easy installation. The valve features a forged brass body, ensuring durability and reliability in various applications. The threaded muff further enhances the valve's functionality, making it suitable for a wide range of industrial and commercial uses.
2
With its red lever, the ball valve provides easy and quick operation, allowing for efficient control of the flow of liquids or gases. The brass construction not only offers excellent corrosion resistance, but also ensures high performance and long service life. The male and female threaded options provide flexibility in installation, catering to different piping requirements.
3
Overall, the brass red lever ball valve is a versatile and dependable solution for controlling the flow of fluids in various systems. Its sturdy construction, threaded options, and lever operation make it a practical choice for industrial, commercial, and residential applications where reliable flow control is essential.
